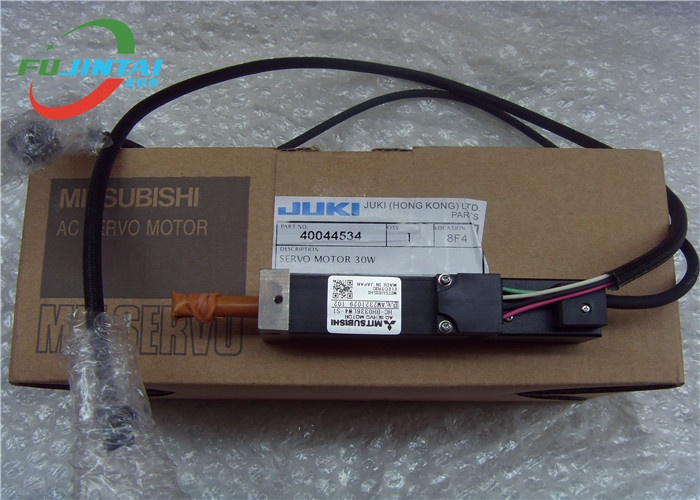

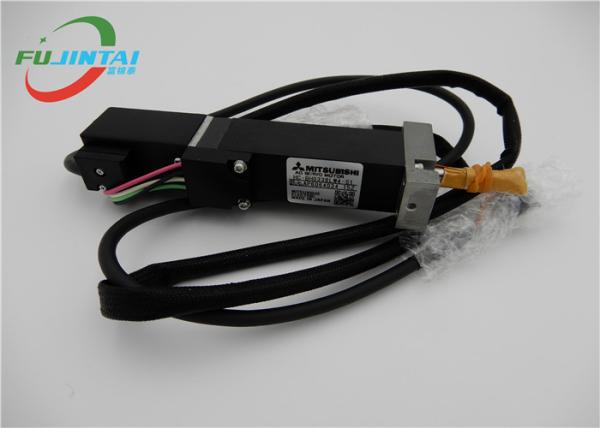

JUKI 2070 2080 1070 1080 Z MOTOR 40044534 HC-BH0336LW4-S1
Specifications
| Brand Name | JUKI Z MOTOR |
| Part Number | 40044534 |
| Model | HC-BH0336LW4-S1 |
| Warranty | 1 month |
| Usage for Machine | JUKI KE2070 KE2080 KE1070 KE1080 FX-2 |
| Ensure | Test in machine before shipping |
| Guarantee | Original 100% and working |
| Delivery Methods | Ocean Transport, Air Transport, Air Express Services |
| Delivery Terms | EXW, FOB, CIF |
| Payment Terms | Pay In Advance |
| Services | Supply original new or used and repair service |
Supply Ability:
Sell & repair original new Juki spare parts in an excellent quality:
- E8402706000 JUKI DISCHARGE GUIDE 56
- E9703716000 JUKI MAGNETIC BRAKE
- JUKI 40121779 ST_B_H_JIG
- ESR14107100 JUKI GEAR HEAD FOR CONVEYOR MOTOR
- NM6040002SE JUKI NUT M4
- E3456721000 JUKI ATC LABEL C
- E3257760000 JUKI SCREW
- JUKI 40002168 BANK-UP(F)CABLE ASM
- ESZ13060000 JUKI SENSOR CONTROLLER (S3D2-EK)
- E86017260A0 JUKI MTC CONTROL BOARD
- JUKI 40051583 DOOR LOCK BASE
- E6975705000 JUKI UPPER COVER 2424
- E94527050A0 JUKI Z MOTOR RELAY CABLE ASM.
- E3202729000 JUKI HEAD STUD
- E3230729000 JUKI CONNECTER COVER 20
- HB001290000 JUKI POWER RELAY FOR DIRECT CURRENT
- JUKI 40023050 DOOR SWITCH BASE FA
- JUKI 40000736 Y BELT STAY (2)
- E1212706000 JUKI HOOK SHAFT
- JUKI 40016548 CATCH CLIP
- JUKI 40001982 OCC A LIGHT PCB ASM
- E2726721000 JUKI HANDLE SHAFT R
Product Advantages:
An SMT component is usually smaller than its through-hole counterpart because it has either smaller leads or no leads at all. It may have short pins or leads of various styles, flat contacts, a matrix of solder balls (BGAs), or terminations on the body of the component.
The main advantages of SMT over the older through-hole technique are:
1. Smaller components.
2. Much higher component density (components per unit area) and many more connections per component.
3. Components can be placed on both sides of the circuit board.
4. Higher density of connections because holes do not block routing space on inner layers, nor on back-side layers if components are mounted on only one side of the PCB.
Stock Adequate:
| W04b | UF08600 UF08700 |
| W8 | UF02300 UF07700 UF00500 UF01300 |
| W8(0402) | UF04100 UF07800 UF04200 UF04300 |
| W08c | UF09700 2UDLFA0002 UF09800 UF09900 |
| W12 | UF00600 UF00700 UF01400 |
| W12c | UF10000 UF10100 UF10200 |
| W16 | UF00800 UF01500 |
| W16c | UF10300 UF10400 |
| W24 | UF00900 UF01600 |
| W24c | UF10500 UF10600 |
| W32 | UF01000 UF01700 |
| W32c | UF10700 UF10800 |
| W44 | UF01100 UF01800 |
| W44c | UF10900 UF11000 |
| W56 | UF01200 UF01900 |
| W56c | UF11100 UF11200 |
| W72 | UF05200 UF02500 |
| W88 | UF05300 UF02600 |
| W104 | UF05000 UF09600 |
Welcome to Surface Mount Process
This website has been created primarily to be a technical resource for surface mount process engineers and also for anyone with an interest in surface mount technology (SMT). The scope of the website will be all aspects of the manufacturing process from solder paste printing, solder paste inspection, component placement, reflow soldering through to automatic optical inspection (AOI) and will include answers to the many frequently asked questions at any time, we will try our best to provide you the professional services and reasonable discount, looking forward to your inquiry!
